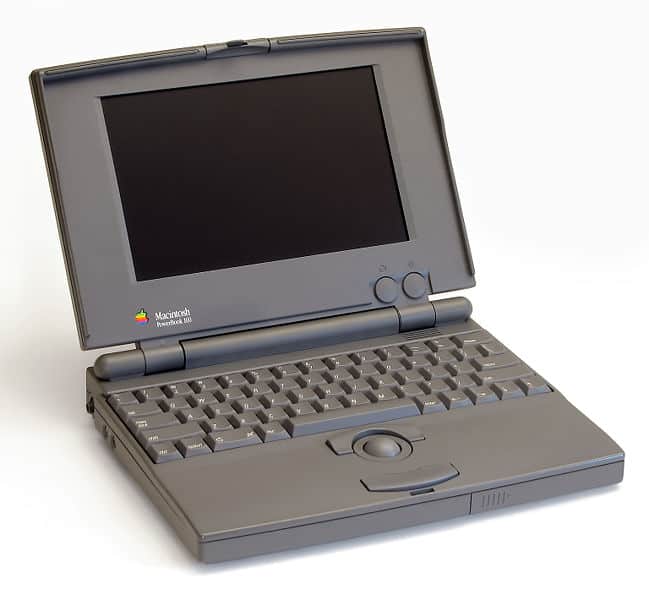

PowerBook 100 (1991)
PowerBook 100 (1991)
CPU
CPU: Motorola MC68HC000
CPU Speed: 16 MHz
Bus Speed: 16 MHz
Data Path: 16 bit
ROM: 256 kB
RAM Type: unique
Minimum RAM Speed: 100 ns
Onboard RAM: 2 MB
RAM slots: 1
Maximum RAM: 8 MB
Expansion Slots: modem
Video
Screen: Passive Matrix
Max Resolution: 1 bit 640×400
Storage
Hard Drive: 20-40 MB
Floppy Drive: external, HDI-20 port
Input/Output
ADB: 1
Serial: 1
SCSI: HDI-30
Audio Out: mono 8 bit mini
Speaker: mono
Miscellaneous
Codename: Asahi, Derringer, Rosebud
Gestalt ID: 24
Power: 17 Watts
Dimensions: 1.8″ H x 11″ W x 8.5″ D
Weight: 5.1 lbs.
Maximum OS: 7.5.5
Minimum OS: 7.1
Introduced: October 1991
Terminated: August 1992
Photo courtesy Danamania, licensed under the GNU Free Documentation License, Version 1.2 or later
